When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. CROSSCAMP specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.
2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, CROSSCAMP weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.
3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section.
4. The manufacturer-specified mass for optional equipment…
… is a value set by CROSSCAMP per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by CROSSCAMP. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.
5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.
| Description | Value |
|---|---|
| Price (incl. VAT) | £68,527.00 a) |
| Standard chassis | Fiat Ducato Light Low Platform |
| Standard engine | 140 MultiJet 3 |
| kW (bhp) | 103 (140) |
| Emission standards | Euro 6e-bis |
| Overall length, approx. | 698 |
| Overall width, approx. | 220 |
| Overall height, approx. | 273 1 |
| Headroom in living area, approx. | 190 |
| Towable load braked/unbraked | 2000 / 750 |
| Wheelbase, approx. | 3800 |
| Bed dimension: Central / middle bed, L x W, approx. | 210 x 110 - 55 O |
| Bed dimension: Rear bed, L x W, approx. | 202 x 75 / 205 x 80 / 199 x 170 |
| Sleeping berths standard / max. | 2 / 3 O |
| Mass in running order (+/-5%)* | 2880 (2736 - 3024)* |
| Manufacturer-specified mass for optional equipment* | 276 |
| Technically permissible maximum laden mass* | 3499 |
| Permitted number of seats (including driver)* | 4 |
| Refrigerator volume (thereof freezer), approx. | 131 (15) |
| Waste water tank, approx. | 90 |
| Fresh water tank capacity, total/ Fresh water tank capacity at driving filling | 115 / 20 |
| Measurement storage opening right (W x H) | 95 x 95 |
| Measurement storage opening left (W x H) | 95 x 75 |
| Fiat chassis features |
|---|
| Fiat Ducato (3,499 kg), MultiJet 140 (2.2l / 103 kW / 140 hp), 6-speed manual transmission, RHD |
| 16" Fiat Alloy wheels in bi-colour Diamond Black |
| Fiat chassis features |
|---|
| Chassis in right-hand drive version |
| Cab blackout blinds |
| Painted front bumper in body colour incl. black skid plate and Fog lights incl. cornering light |
| Leather steering wheel and gear knob with leather sleeve |
| Rain and light sensor with automatic dimming |
| Dashboard with aluminium features |
| Preparation for radio system incl. loudspeakers in the driver's cab |
| Daytime running lights integrated into headlights |
| Steering wheel with control elements |
| DAB+ radio antenna integrated into right exterior mirror |
| Height and tilt adjustment and double armrests for driver and passenger seat |
| Tyre inflation kit and towing eye |
| Trailer Stability Assist |
| Diesel tank 90 litre incl. 19L AdBlue tank |
| Anti-theft device |
| Cruise control |
| Driver and passenger detection |
| Crosswind Assist |
| Tyres M+S Camping (with snowflake) |
| Driver's cab manual Air Conditioning |
| Front-wheel drive |
| Driver and passenger airbags |
| Cup holder in the centre of the dashboard |
| ABS (anti-lock braking system) / EBD (electronic brakeforce distribution) |

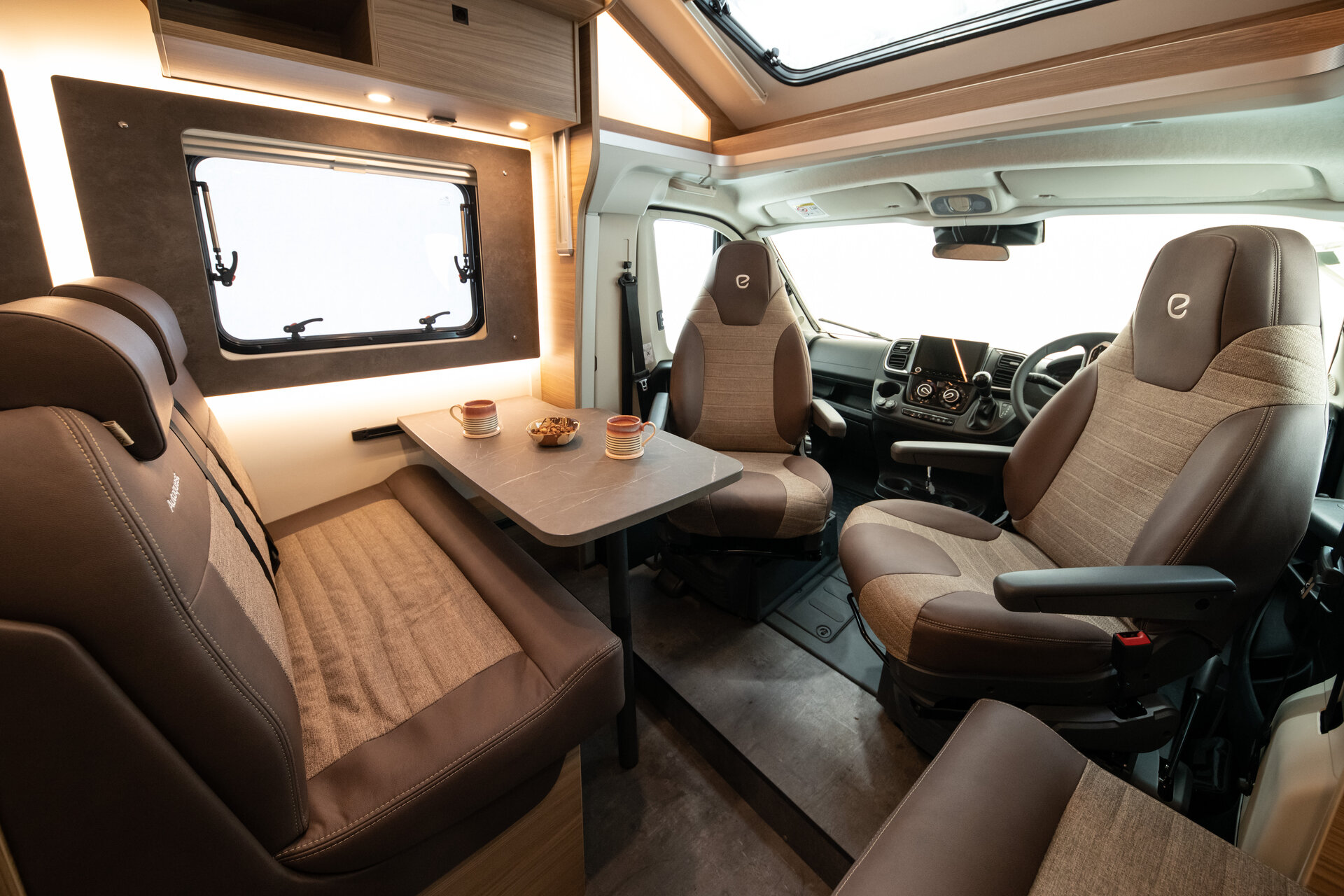

| Captain seats for driver and front passenger with swivel function |
| Automatic Brake Assist after a collision |
| Electrically adjustable and heated exterior mirrors incl. blind spot mirror and integrated turn indicator |
| ESP incl. ASR, Traction Plus, Hill Holder and Hill Descent Control |
| Expedition Grey exterior colour |
| Rear axle mudflaps |
| Right-hand drive chassis |
| Right-hand drive with exhaust on the left side |
| AEBS, Emergency Lane Keeping, Driver Drowsiness Detection, Intelligent Speed Assist |
| Tyre Pressure Monitoring System (TPMS) |
| Exterior features |
|---|
| Opening window in cab roof |
| 40 x 40 cm Panoramic clear glass skylight above the seating lounge incl. fly screen and blackout blind |
| 40 x 40 cm Panoramic clear glass skylight above the rear bed including fly screen and blackout blind |
| Double-glazed flush-fitting windows with blackout blind & flyscreen - easily adjustable |
| Habitation access with ergonomic, wide, electric step |
| Large rear illuminated and heated garage with two garage doors with turn/tighten locks. It also includes rear lowering (150 kg surface load), anti-slip surface, lashing strips and, 1x 230 V socket |
| GRP roof |
| EPS insulation |
| Floor thickness: 38 mm, side wall thickness: 34 mm, and roof thickness: 35 mm |
| Side panels and rear panel made of resistant high-gloss GRP with smooth, shiny surface |
| 70 cm wide living room door with window incl. blackout blind, coat hook and practical storage pouch |
| Bedroom windows (both sides) with blackout blind and fly screen |
| Habitation door with flyscreen. |
| Blackline rear light carrier with 3rd brake light |
| Body technology: GRP-clad underbody and roof with proven reliable floor and body construction with excellent insulation |
| Exterior design |
|---|
| Exterior paint finish - Habitation Grey |
| Exterior design with black rear light carrier, black side skirts, and sleek graphics |
| Interior design |
|---|
| Décor Ashton |
| Quest Maroon upholstery |
| Furniture layouts |
|---|
| Overhead locker doors with soft-close function |
| Rear beds with ergonomic wooden slatted frames and 110 mm thick 7-zone premium mattresses made from climate-regulating material |

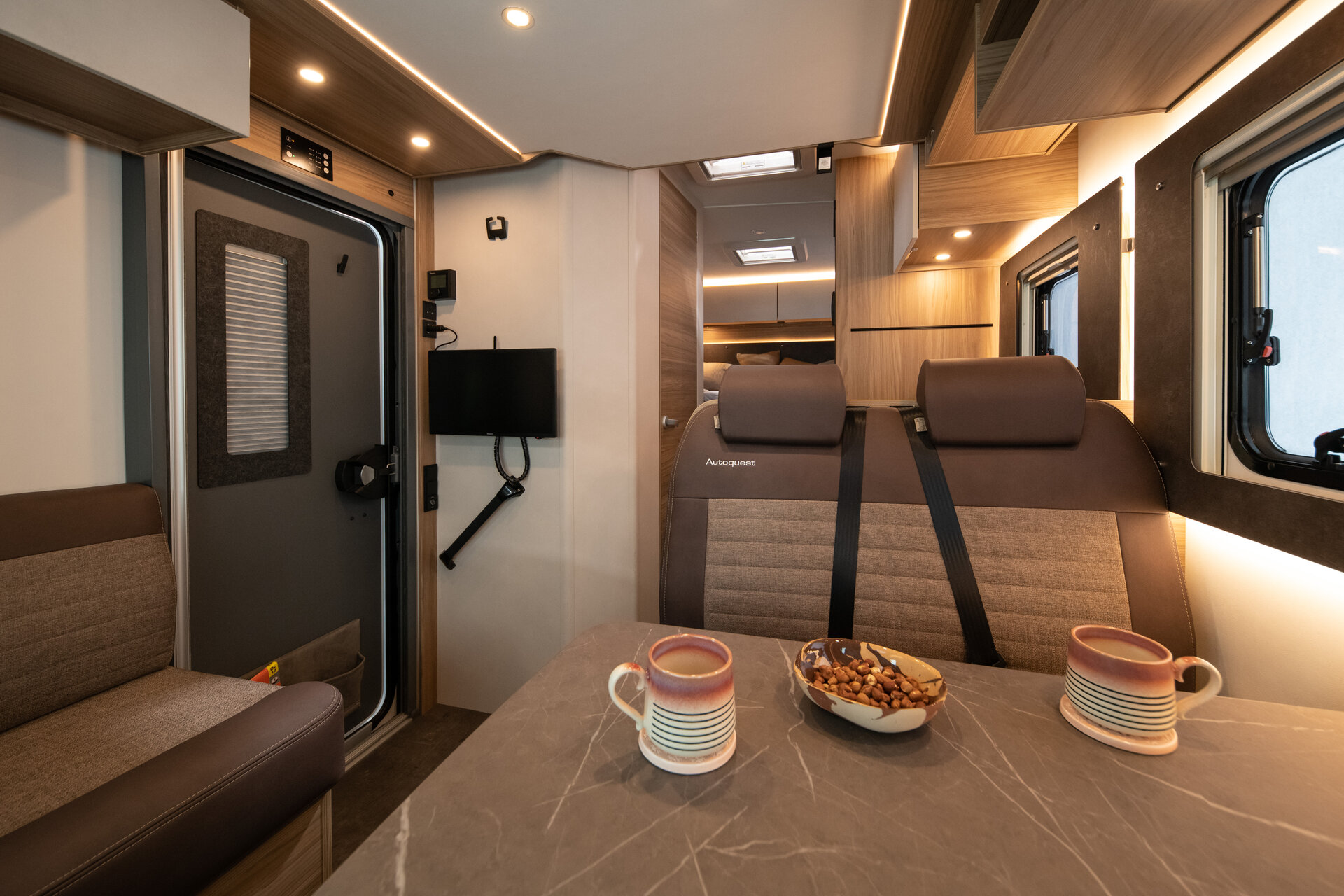

| Cosy lounge seating group with free-standing, rigid table base |
| Roof cabinets in the rear with lateral holders for textile roof cabinet bags (available via Custom Parts) |

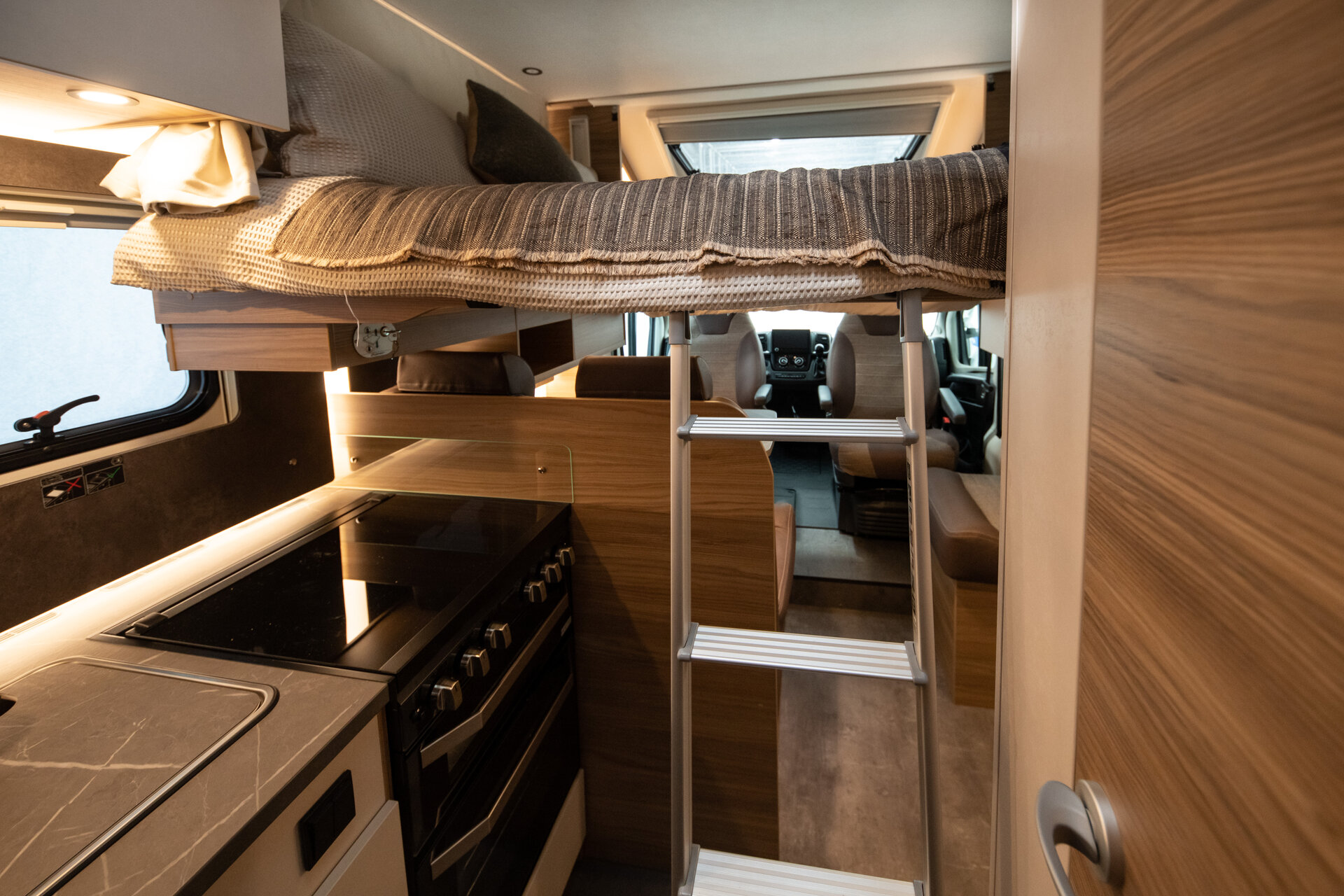

| High-level single beds with comfortable and easy access via steps |
| Single beds convert to double bed |
| Bed conversion for front seating lounge (layout with transverse bed) |
| Modern entrance area with practical entry handle, coat hook, practical storage bag and preparation for TV mount |
| Kitchen |
|---|
| MultiFlex rail system (additional accessories available via Crosscamp Custom Parts) |
| Tall compressor refrigerator with separate freezer compartment (131 L) |
| Gourmet kitchen with oven and hob with 4 burners, drawer with cutlery insert, and foldable work surface. |
| Kitchen splash back |
| Sink cover with integrated cutting board |
| Bathroom |
|---|
| Equipped with cabinets, storage areas, hooks, a large mirror, and large mounted washbasin |
| Swiveling bathroom wall for optimal use of space |
| Shower grate |
| Multimedia |
|---|
| Moniceiver including DAB+, wireless Apple CarPlay & Android Car |
| Integrated single-lens rear view camera |
| 5G Wi-Fi router including 4x4 roof antenna with 22" HD TV including holder |
| Pre-wiring for satellite system |
| Heating |
|---|
| Built-in heating in the seating unit for optimum heat distribution |
| Diesel hot air heating 6 kW with 1.8 kW electric heating element incl. digital control element and integrated height kit |
| Air Conditioning |
|---|
| Pre-wiring for roof Air Conditioning |
| Electrical installation |
|---|
| On-board control panel |
| EBL with separate FI protection switch |
| Automatic switch-on/disconnect for starter battery, leisure battery and refrigerator |
| Number of sockets: 1x 12V, 5x 230V, 4x USB |
| Leisure battery AGM, 95 Ah |
| Awning light 12 V |
| LED lighting throughout the vehicle |
| Functional lighting (surface-mounted and recessed spotlights) |
| Light Moments: Indirect ambient lighting above the overhead lockers |
| Light Moments: Illuminated window panelling in the living room |
| Light Moments: Illuminated kitchen splashback |
| Pre-wiring for solar panel |
| Water supply |
|---|
| Fresh water tank in insulated and heated area |
| Submersible pump |
| Insulated waste water tank |
| Gas supply |
|---|
| Storage space for 1 gas bottle with 11 kg filling weight |
| Safety |
|---|
| 2 kg fire extinguisher |
| Smoke detector |
| Multifunctional steering wheel |
| Fiat chassis features |
|---|
| Fiat Ducato (3,499 kg), MultiJet 140 (2.2l / 103 kW / 140 hp), 8-speed torque converter automatic transmission, RHD |
| Fiat Ducato (3,499 kg), MultiJet 180 (2.2l / 132 kW / 180 hp), 8-speed torque converter automatic transmission, RHD |
| Fiat chassis features |
|---|
| Homologation label for Great Britain |
| Homologation label valid for EU Right Hand Drive Countries |
| Adaptive Cruise Control (ACC), > 30 km/h |
| Automatic cab air conditioning, digital speedometer with 7" instrument cluster and wireless phone charger in the centre console |
| Full LED low beam |
| Electric parking brake |
| Tow hitch (observe maximum permitted trailer weight) |
| Exterior colour - Chassis in Black Metallic |
| Exterior colour - Chassis in Lanzarote Grey |
| Exterior features |
|---|

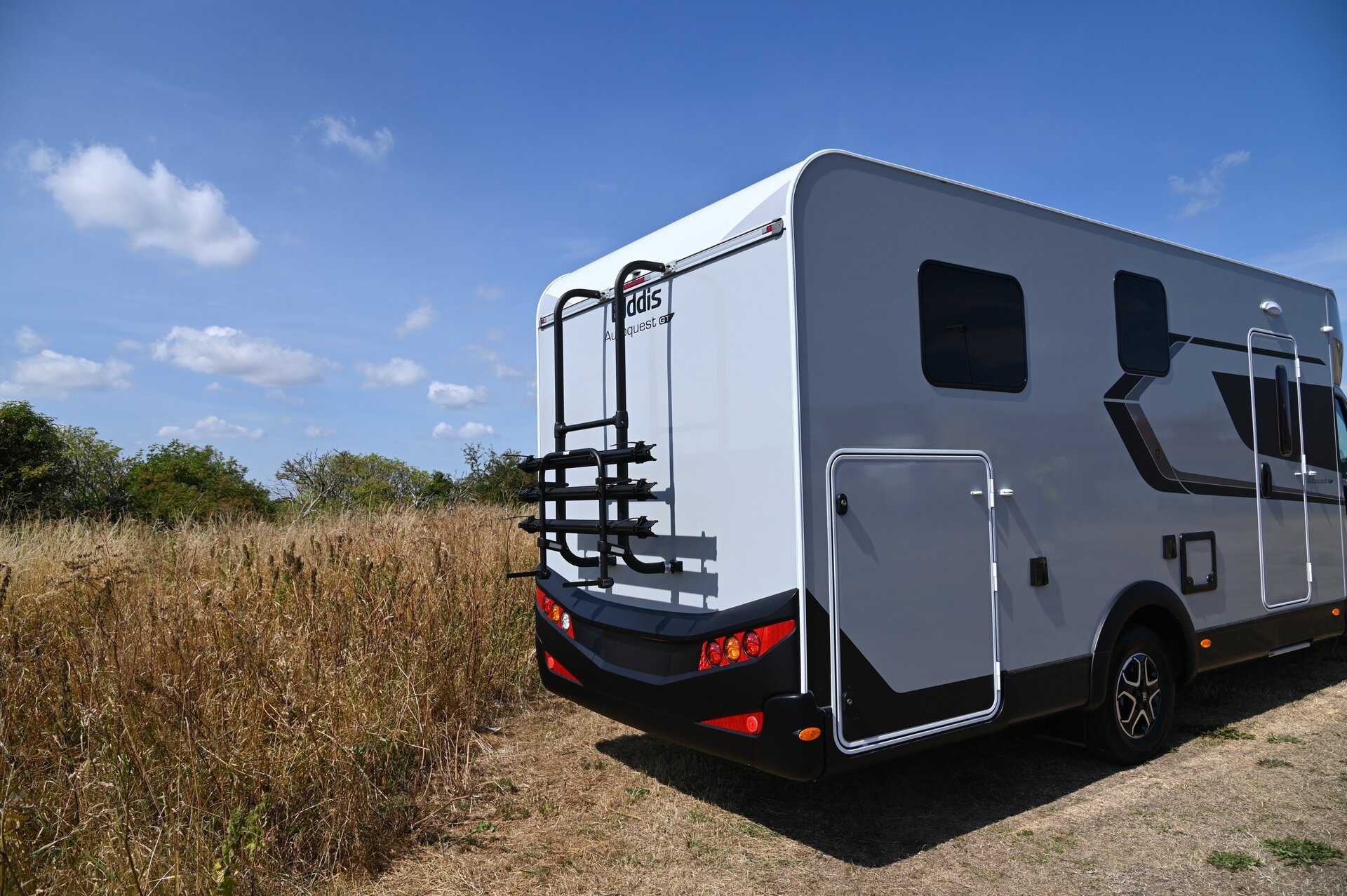

| Bike rack for 3 bikes (rear) |
| Roof awning Omnistor 3.25 m (manual) |
| Exterior design |
|---|
| Bespoke Envy Graphics |
| Interior design |
|---|
| Envy upholstery including driver and passenger seat covers |
| Electrical installation |
|---|
| Lithium (LiFePo4) battery 150Ah incl. 45 A charge booster, instead of standard AGM habitation battery |
| Lithium (LiFePo4) battery 2x150Ah (300Ah) incl. 45 A charge booster, instead of standard AGM habitation battery |
| Packages |
|---|
| Chassis Kit |
| Dolphin Envy Edition |
| Vehicle length | 698 |
| Vehicle width | |
| Height | 273 |
| Height with extended pop-up roof | |
| Headroom with extended pop-up roof | |
| Bed dimensions, middle | 110 x 210 |
| Bed dimensions, rear | 75 x 202 |
| Bed dimensions, rear | 80 x 205 |
| Bed dimensions, rear | 170 x 199 |
